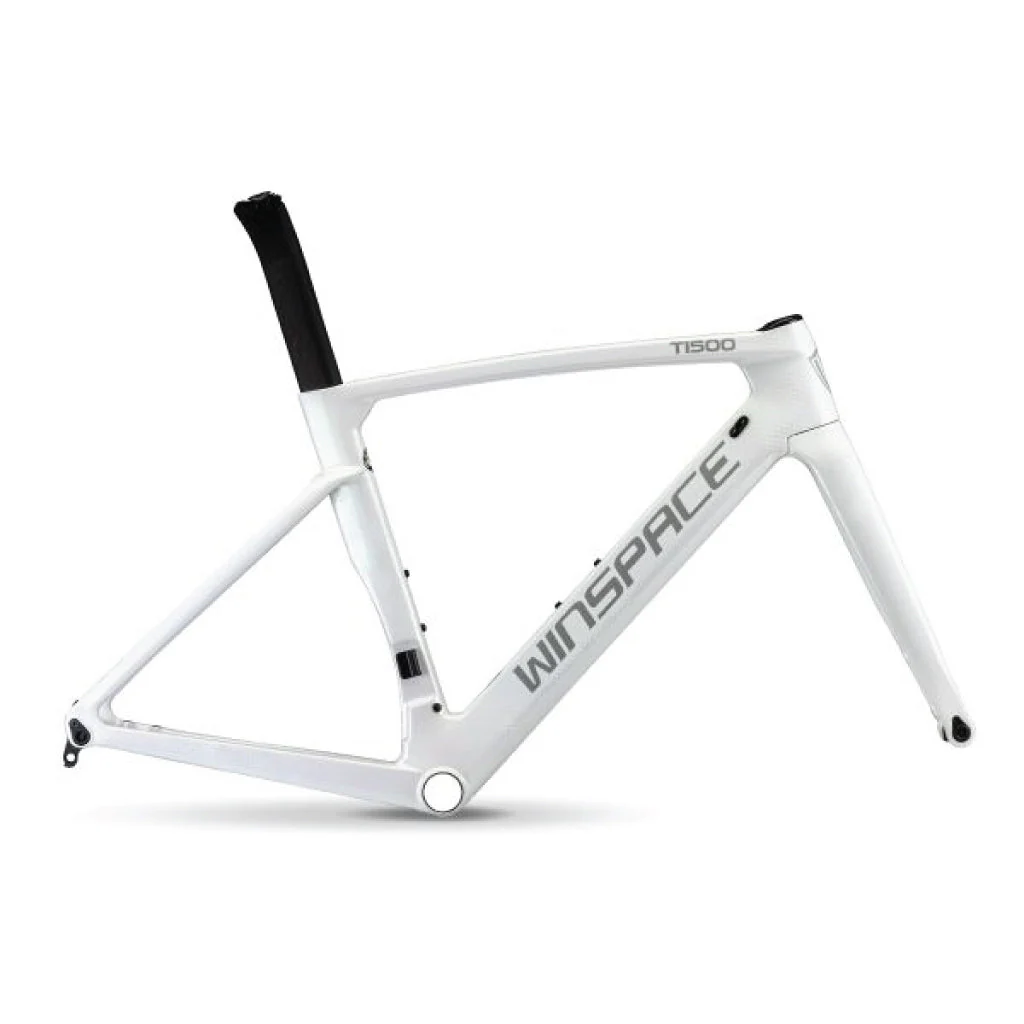

Winspace - T1500 Frameset

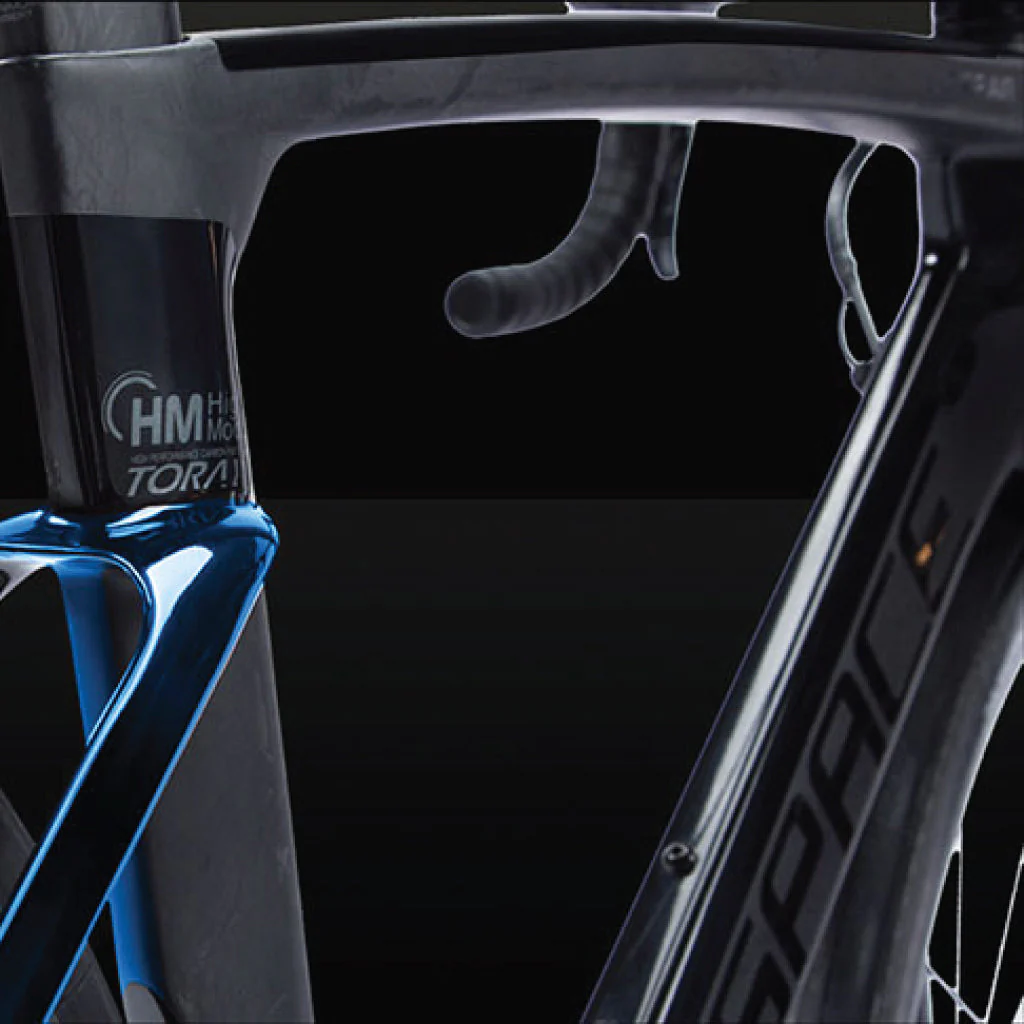

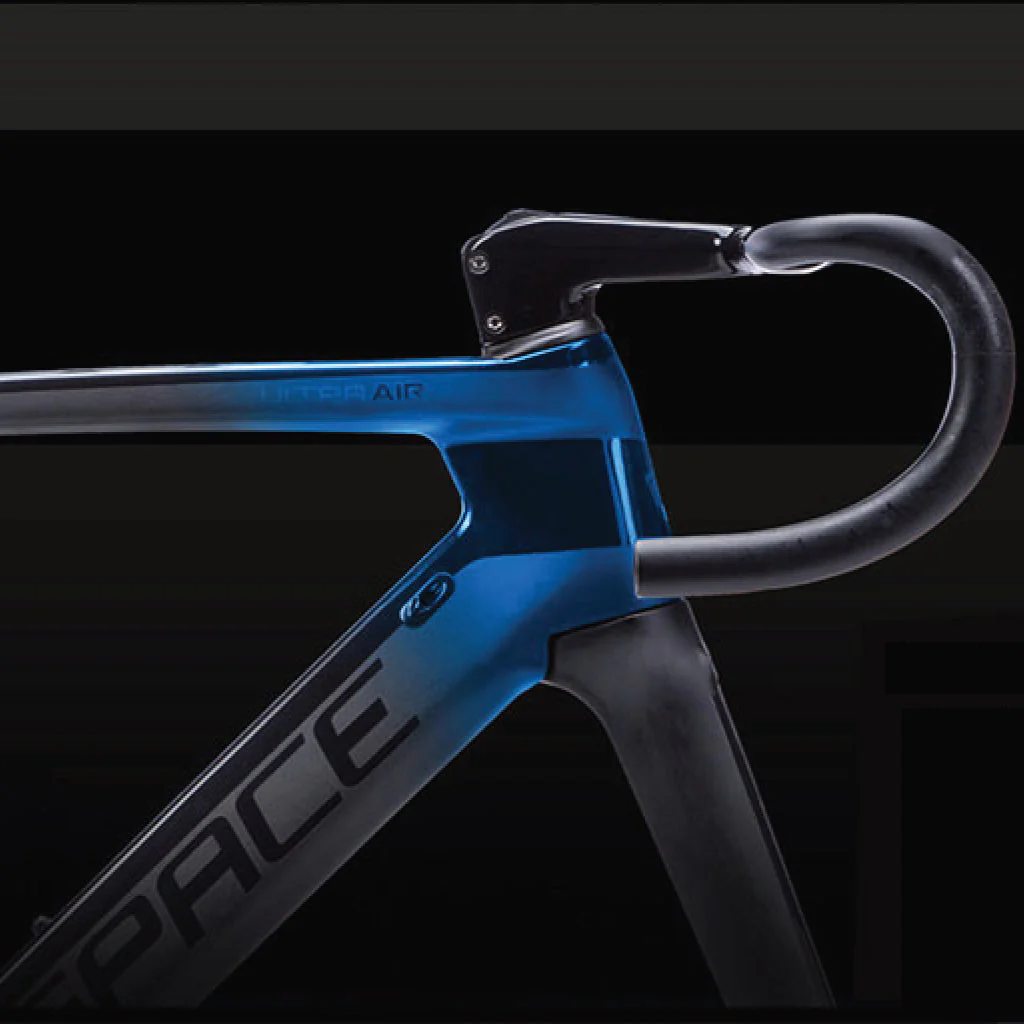

I-BEAM HEADTUBE: An I-Beam shaped headtube makes the bike more rigid for sprints and optimizes air flow over the rest of the frame. The headset integrates seamlessly with our ZERO integrated cockpit.
T-TAIL: The Winspace T-Tail ensures maximum rear-triangle rigidity. Additionally, the Flat section intersecting the seat-tube helps separate airflow around the rear wheel, drastically reducing drag.

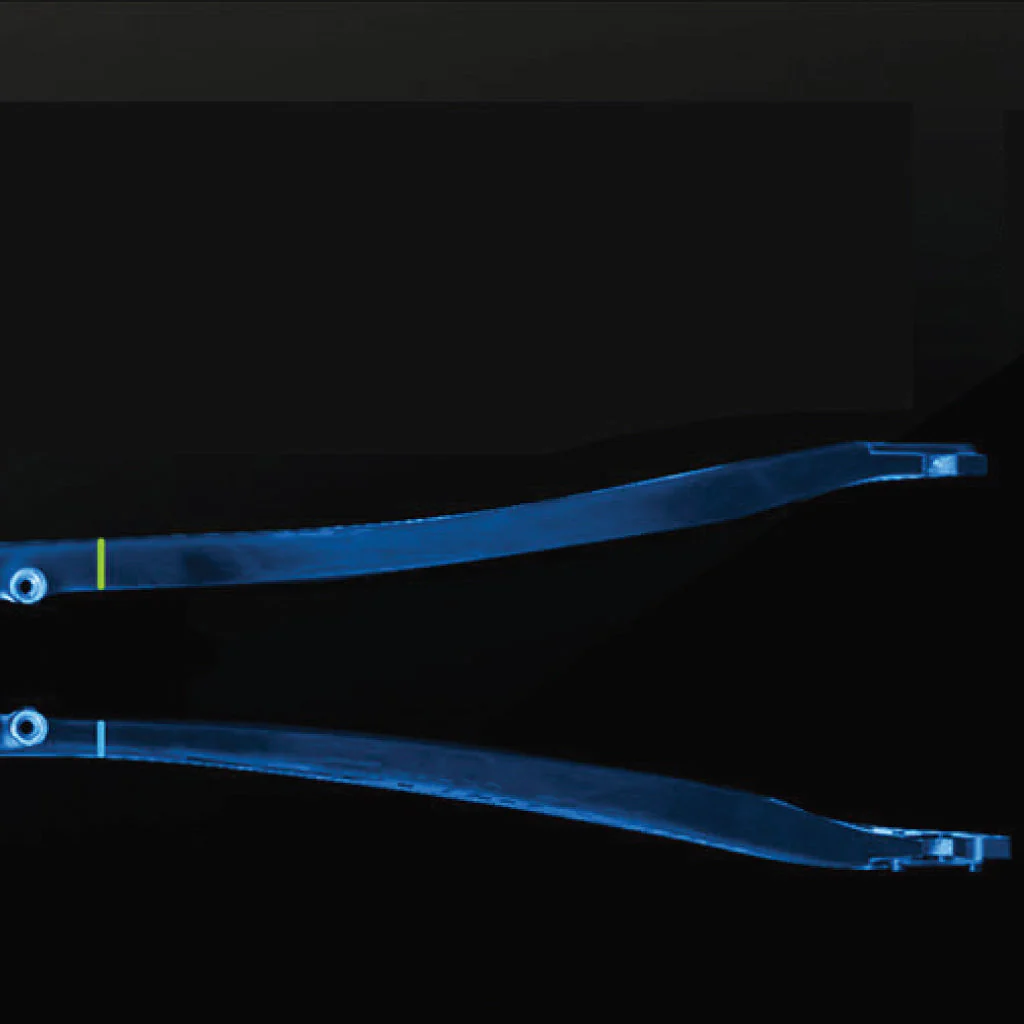

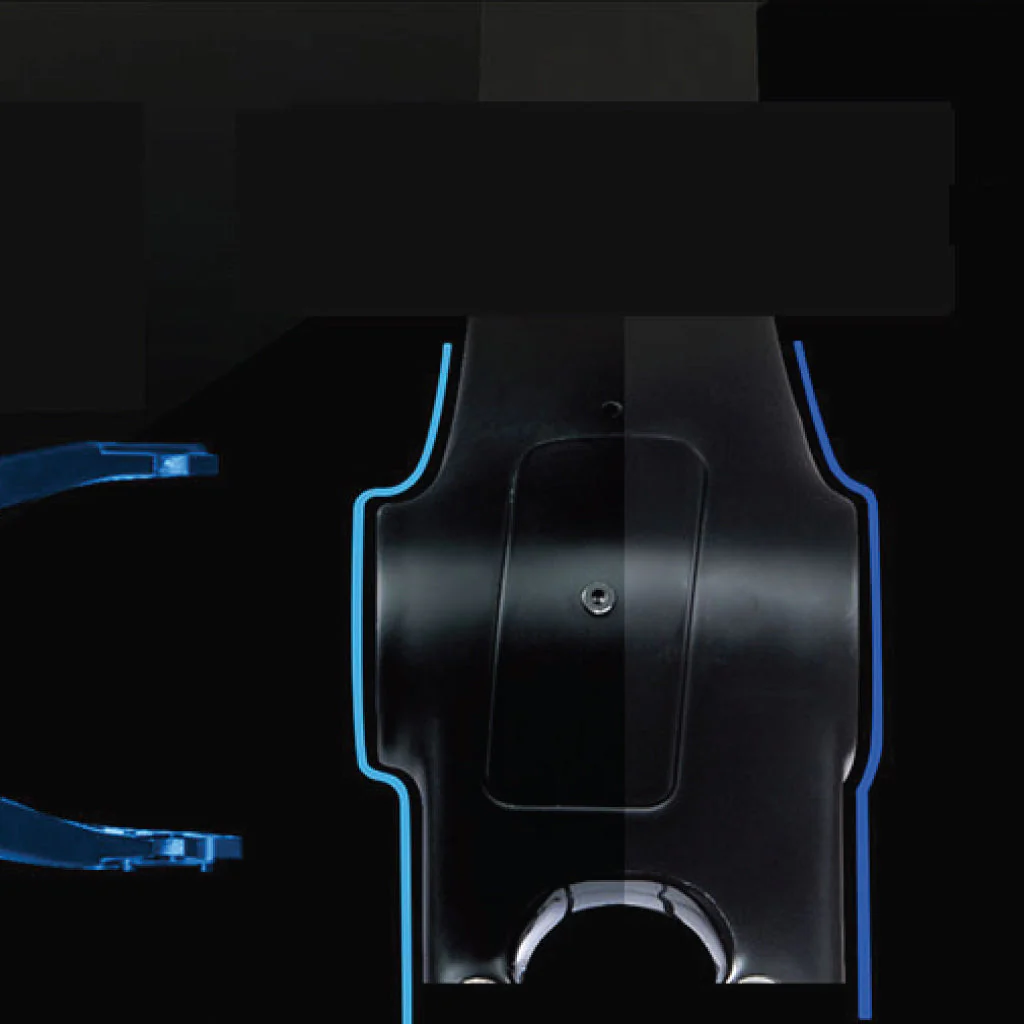

ASYMMETRIC CHAINSTAYS: Asymmetric chainstays are designed to counter asymmetric loads placed on the bike frame by the drivetrain.
BB86 BOTTOM BRACKET: The BB86 bottom bracket is designed for maximum compatibility.
WIDE-CLEARING FORK: The Prongs of the fork bow-out to keep maximum clearance from the spinning spokes of the wheel in order to maintain clean airflow over the fork.
DIRECT MOUNT BRAKES: Direct-mount brakes on the Rim brake version offer better braking performance and a wider tire clearance.
SPECIFICATION:
Brand Name: Winspace

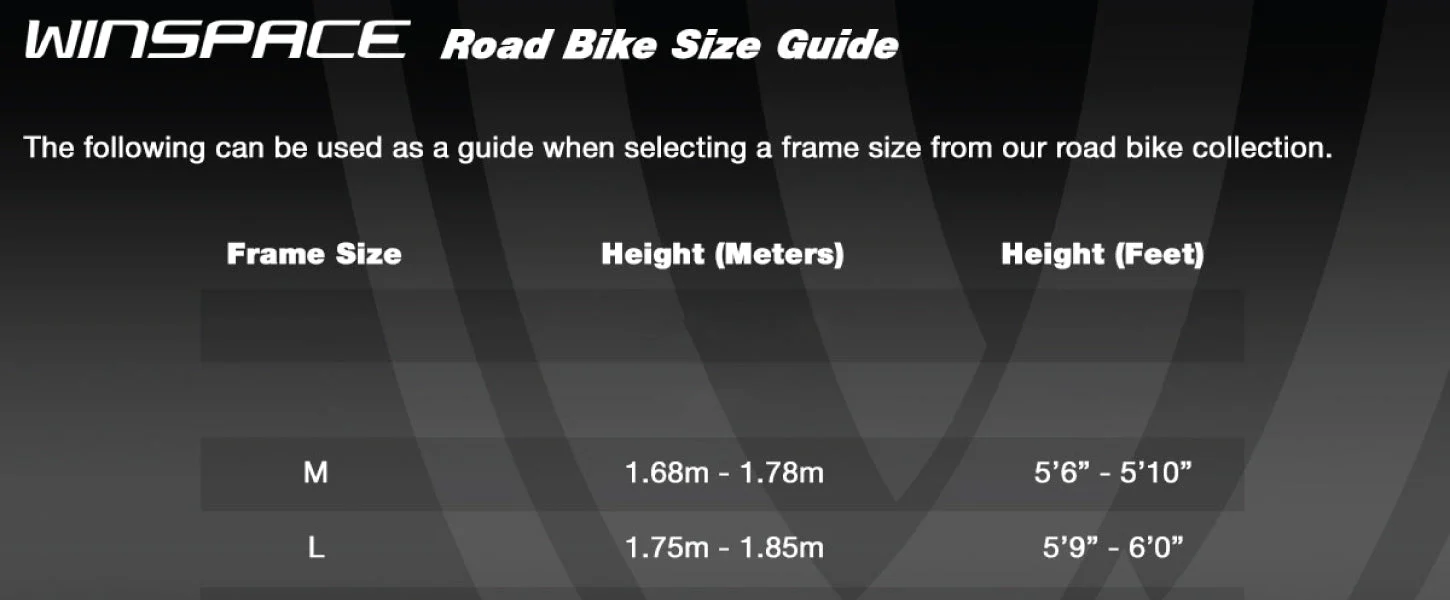

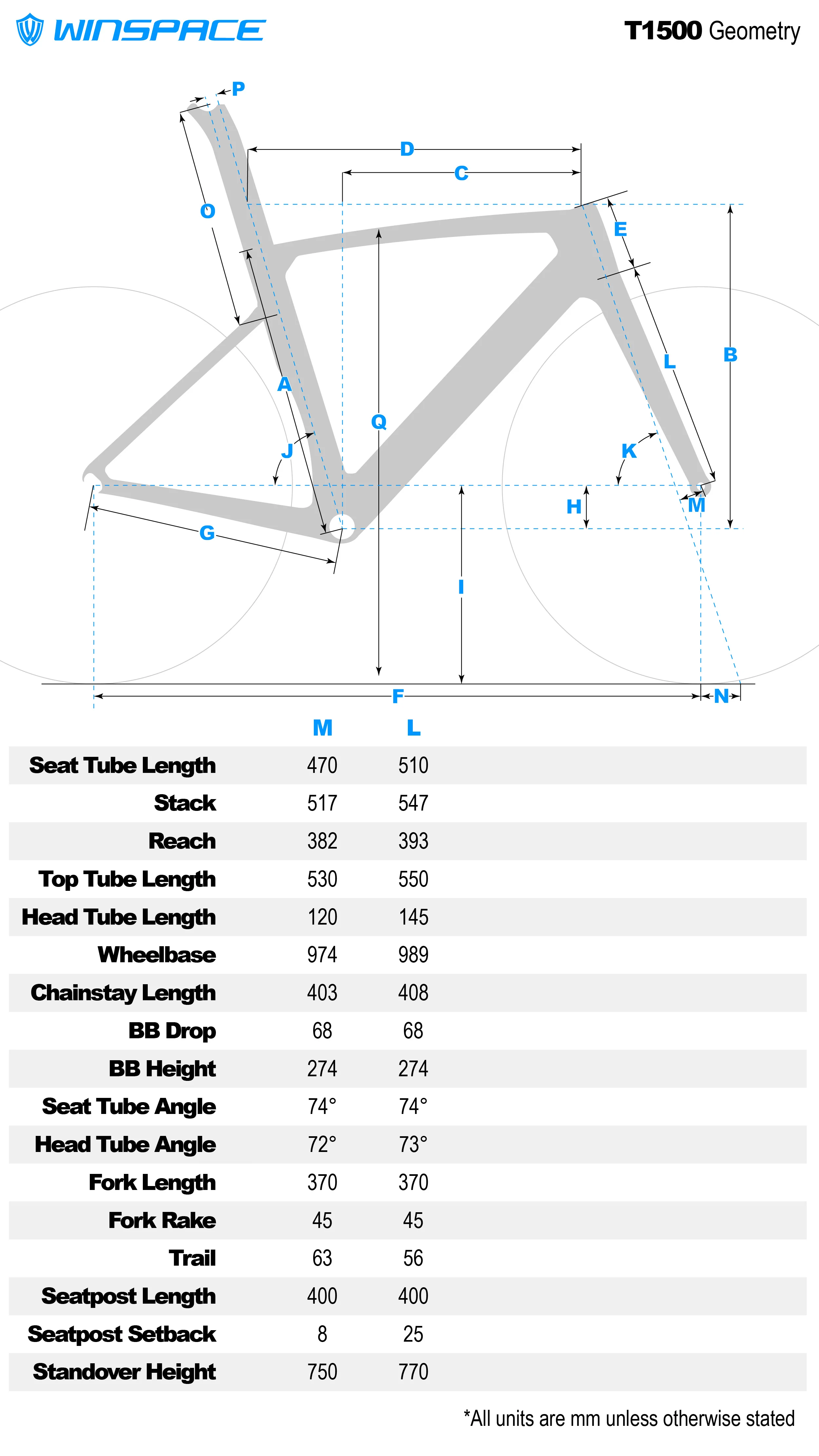

Model name:T1500Sizes: M (470mm), L (510mm)
Headtube:1 1/8”-1 1/2” Tapered (headset included.)
BB: BB86
Seatpost: Proprietary Aero Seat Post (Included.)
Brake: direct mount rim brake / flat mount disc brake
Front derailleur: Brazed on
Derailleur Routing: Mechanical / Di2 /Campy EPS / SRAM eTAP
Tire clearance: Max. 700C*28C
Wheel Axle: Rim Brake: 9mm QR F100mm R130mm / Disc Brake: 12mm through axle F100mm R142mm
Carbon fiber: Toray T800 and T700
Weight: frame 1050+/-30g for M size (Unpainted)
UCI approved
Contents: Frame, Fork, Seatpost, Headset, Di2 cable stoppers, Spare Derailleur Hanger
Original: $129,999.00
-65%$129,999.00
$45,499.65More Images
Winspace - T1500 Frameset
I-BEAM HEADTUBE: An I-Beam shaped headtube makes the bike more rigid for sprints and optimizes air flow over the rest of the frame. The headset integrates seamlessly with our ZERO integrated cockpit.
T-TAIL: The Winspace T-Tail ensures maximum rear-triangle rigidity. Additionally, the Flat section intersecting the seat-tube helps separate airflow around the rear wheel, drastically reducing drag.
ASYMMETRIC CHAINSTAYS: Asymmetric chainstays are designed to counter asymmetric loads placed on the bike frame by the drivetrain.
BB86 BOTTOM BRACKET: The BB86 bottom bracket is designed for maximum compatibility.
WIDE-CLEARING FORK: The Prongs of the fork bow-out to keep maximum clearance from the spinning spokes of the wheel in order to maintain clean airflow over the fork.
DIRECT MOUNT BRAKES: Direct-mount brakes on the Rim brake version offer better braking performance and a wider tire clearance.
SPECIFICATION:
Brand Name: Winspace
Model name:T1500Sizes: M (470mm), L (510mm)
Headtube:1 1/8”-1 1/2” Tapered (headset included.)
BB: BB86
Seatpost: Proprietary Aero Seat Post (Included.)
Brake: direct mount rim brake / flat mount disc brake
Front derailleur: Brazed on
Derailleur Routing: Mechanical / Di2 /Campy EPS / SRAM eTAP
Tire clearance: Max. 700C*28C
Wheel Axle: Rim Brake: 9mm QR F100mm R130mm / Disc Brake: 12mm through axle F100mm R142mm
Carbon fiber: Toray T800 and T700
Weight: frame 1050+/-30g for M size (Unpainted)
UCI approved
Contents: Frame, Fork, Seatpost, Headset, Di2 cable stoppers, Spare Derailleur Hanger
